Osculati

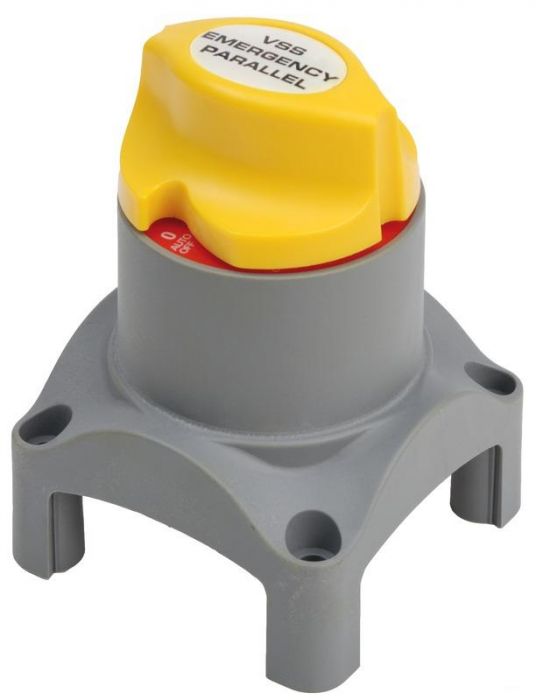

Voltage sensitive switch

Sku code

14.386.10

Dual operation voltage-sensible switch and emergency parallel from Osculati V 12/24 Max capacity intermittent 455 A Max capacity in continuous 275 A measure mm 67x67x95 ...

More info

Special Price €116.31 Regular Price €122.87 Until day 2/6

Available in stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description and Details

Dual operation voltage-sensible switch and emergency parallel

This Voltage Sensitive Switch (VStainless steel) automatically senses the voltage of two connected batteries or battery banks and provides optimal efficient charging of the second bank.
The VStainless steel allows for two independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger).
Once the charging source is activated the VStainless steel lets the first battery of the main bank (engine battery) recharge; when this latter reaches 13.2V the switch opens the circuit and lets the second battery (service battery) recharge.
The emergency parallel function can be operated manually by means of a knob or through an On/Off button on the dashboard.
Recess or surface mounting.

V:	12/24
Max capacity intermittent:	455 A
Max capacity in continuous:	275 A
measure mm:	67x67x95
